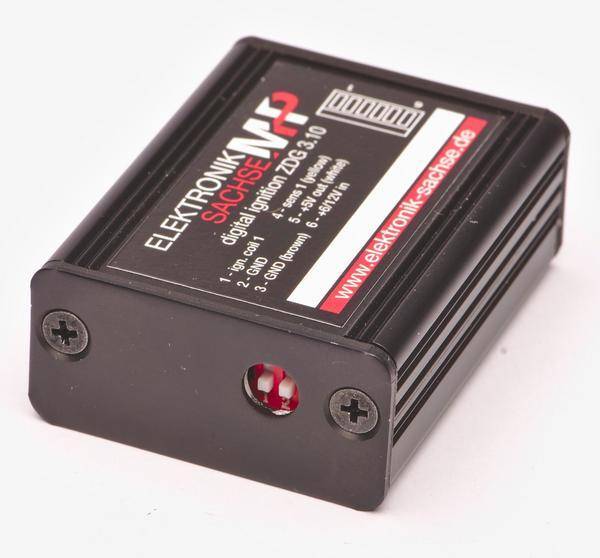

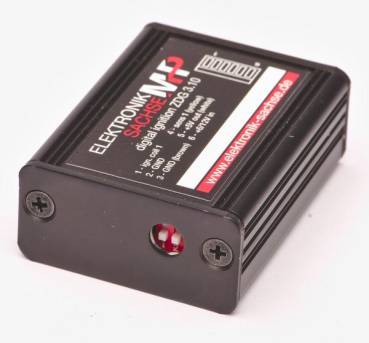

For Laverda 75/100. 6V version. There are 3 ignition curves selectable via DIP switches and a test mode.
Ignition box dimensions
Width: 42 mm
Height: 20 mm
Length: 55 mm
Length including connections: 55 mm
Advantages
- No distributor required / No breaker points needed, replaced by hall effect sensors
- Free from wear
- Prolonged life
- Simple installation
- Every part is available as spare part
- Microprocessor controlled ignition curve
Installation Manual
See tab “Installation” further up on this page, next to “Description”.
